工業管道系統已經被廣泛應于化工、石油及城市水暖供應等領域，焊縫質量是一種重要的工業管道內部潛在缺陷，它的好壞是管道運輸安全、可靠和使用壽命的一個決定性因素。
廈門岳航計算機工程有限公司
聯系人：李素云
企業QQ：2851195446，2851195466
手機：18965423501
座機：0592-5165501
在外一些發達，管道檢測機器人已經誕生并投入使用，但是進口設備昂貴，并且維護費用高，需要培訓才能正確使用。在我，這方面的研究工作起步較晚。目前內還沒有成型的、商品化的產品問世，故該項目的研發可以向產業化方向發展，加強工業管道的檢測和管理。
機器人在管道外面沿著固定的軌跡移動，操作者通過外部的監視器監視機器人運行情況。當監視器屏幕顯示焊縫時，操作者控制機器人點進和點退以準確定位焊縫。人工操作定位準確率較高，但效率低。為了提高管道焊縫檢測機器人的自動化程度，本文采用了一種基于DSP的管道焊縫檢測機器人系統，設計了一套焊縫檢測機器人系統，可將機器人可靠、準確、快速地牽引至焊縫處，從而完成焊縫自動定位任務。由于該機器人可在X和Y方向移動，所以當發現焊縫時還可以多視角觀察焊縫，以確定焊縫的大小和形狀。

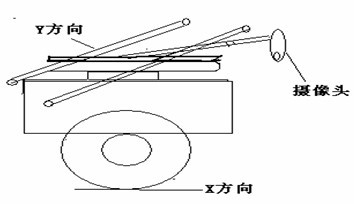

機器人外形如圖1所示：
